Details

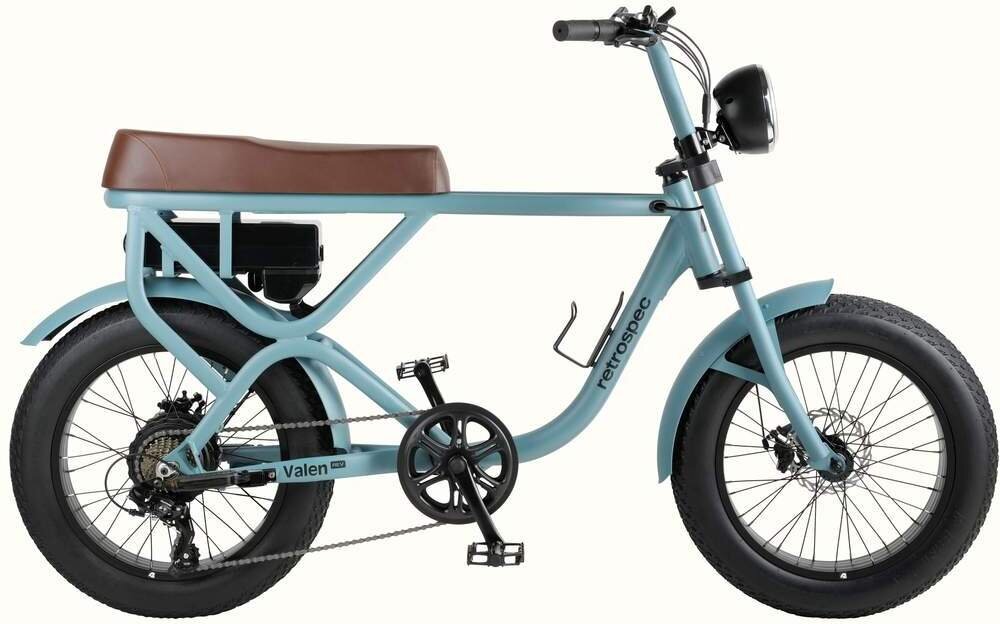

Valen Rev is the ultimate moto-style electric bike for the everyday rider. With a powerful 48v motor, 6 levels of pedal assist and a 55 mile range, you’ll tap into the exhilaration of wind-in-your-face riding. Hit the pavement, explore off road, or cruise around on sand. Valen Rev thrives on the open road.
*Pricing does not include destination or assembly charges.
Specs
Frame | Alloy 6061 |
---|---|
Fork | Steel triple-clamp style (w/integrated handlebar), 28.6mm steerer |
Electric-Assist Type | PAS/Throttle |
Motor Specs | 48V/750W: brushless rear hub motor, 9-pin connector, MXUS |
Drive System | Hub |
Throttle | Quarter Grip Twist |
Battery Type/Weight | Li-ion |
Charger Type | US Plug 9 Pin |
Range on Full Charge | 45-55 miles |
Max. Assisted Speed | 20 Mph |
Saddle | Moto-style SuperSoft Dims: Length: 570mm, Width: 110mm/front - 180mm/rear, Height: 70mm/front - 100mm/Rear |
Handlebars | Integrated Moto Style Riser |
Bicycle Drivetrain | Rear Derailleur - Shimano Tourney 7S, RD-TX35-SGS, Shifters - Shimano Tourney Thumb Shifter (push/pull) 7S, SL-TX50-7R, Crankset - Alloy 3-piece 152mm x 48T, alum arms, steel chainring, Chain - KMC Z-series 1/2 x 3/32", BB - Crmo spindle sealed cartridge, 100 x 170mm, Freewheel/Cog - Shimano 7-speed 14-28 (14-16-18-20-22-24-28) |
Wheels | Rims Alloy 20" x 4.0 Fat, 36H x 13G, single-wall Hubs - F: Alloy bolt-on, R: Hub motor bolt-on, 36H x 13G, Spokes - 13G w/brass nipples, black ED finish |
Tires | Tires - 20 x 4.0, S/V Kenda |
Brakes | Mechanical disc Front & Rear, 160mm |
Pedals | Alloy Platform |
Weight | N/A |
Color(s) | Matte Blue Fog, Matte Black, and Matte Olive Drab |
Sizes | One Size |
Accessories & Extras | Kickstand Alloy chainstay mount Light(s) Front + Rear powered by Valen lithium-ion battery charging system Fenders Steel w/steel stays Chaincover Chainring cover |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Matte Black | 4560 | 210000015673 |
Matte Blue Fog | 4561 | 210000015675 |
Matte Olive Drab | 4562 | 4562 |
